HR dashboard in Power BI and SQL

  • SQL Server Management Studio(SSMS), Power BI
  • 2022

Purpose: Preparing the table for processing in Power BI involves data cleaning, aligning data types, calculating the age and length of service in the company for each employee.

Data Structure:The Human table in SSMS contains data about employees, including their date of birth, first name, last name, date of hire and date of termination (if the employee has left), and personal information about the employee.

    Operations with data in SQL:
  • 1. First, we will check the data types in the table to ensure they are displayed correctly. To do this, we will write a query:

        --checking data type
    SELECT COLUMN_NAME, DATA_TYPE
    FROM INFORMATION_SCHEMA.COLUMNS
    WHERE TABLE_NAME = 'Human';
        }

  • 2. The client also wants to replace "Last_name" with "Surname" and "Team" with "Squad". We will do this for them by renaming the columns.

        exec sp_rename '[projects].[dbo].[Human].last_name','Surname','Column';
    exec sp_rename '[projects].[dbo].[Human].location','Squard','Column';
    UPDATE Human

  • 3. Unfortunately, the data types for birthdate, termdate, and Age are set incorrectly. Additionally, termdate is set with errors and uses different date separators. Let's start by correcting the type of birthdate from varchar to date:

        -- change data type for Birthdate

    UPDATE Human
    SET birthdate =
        CASE

            WHEN birthdate LIKE '%-%' THEN CONVERT(DATE, birthdate, 102)
            ELSE NULL
        END;


    ALTER TABLE Human
    ALTER COLUMN birthdate DATE;

    --Let's do the same for term_date as well:
    --change type of termDate
    UPDATE Human
    SET termdate = CONVERT(date, LEFT(termdate, 10), 126)
    WHERE termdate IS NOT NULL AND termdate != '';


    ALTER TABLE Human
    ALTER COLUMN hire_date DATE;

    --And change data type for Age column:
    --age selection for PBI
    alter table Human
    add AgeRange INT;


  • 4.Let’s jump to the calculation of employee’s age. For this task, create a query:

        --calculate age of employee
    update Human
    set Age = DATEDIFF(YEAR,birthdate,GETDATE());

    and calculate the age type of employee as our client wants. For this reason, we can use case to divide all employees of to three age groups

          - young, middle and senior:
    --add Age type
    alter table Human
    add AgeType Varchar(20);

    --add age type from table

    UPDATE Human
    SET AgeType =
        CASE
            WHEN Age BETWEEN 18 AND 30 THEN 'young'
            WHEN Age BETWEEN 31 AND 45 THEN 'middle'
            WHEN Age > 45 THEN 'senior'
            ELSE NULL
        END;


  • 5.What is the duration for each employee to work in the company? For resolve this task, we need to use our old good chap - case as in our previous step when we calculate AgeType:

        -year in the company
    --add time column
    alter table Human
    add Duration VARCHAR(50);

    ALTER TABLE Human
    ALTER COLUMN Duration VARCHAR(50);

    --calculate duration emplyeing in the company
    UPDATE Human
    SET Duration =
        CASE
            WHEN termdate IS NULL THEN 'Working'
            WHEN DATEDIFF(year, hire_date, termdate) = 0 THEN 'Working'
            ELSE CAST(DATEDIFF(year, hire_date, termdate) AS VARCHAR(50))
        END;


    Our data is ready and waiting to be imported into Power BI. Therefore, we can easily proceed with it.

Power Bi part

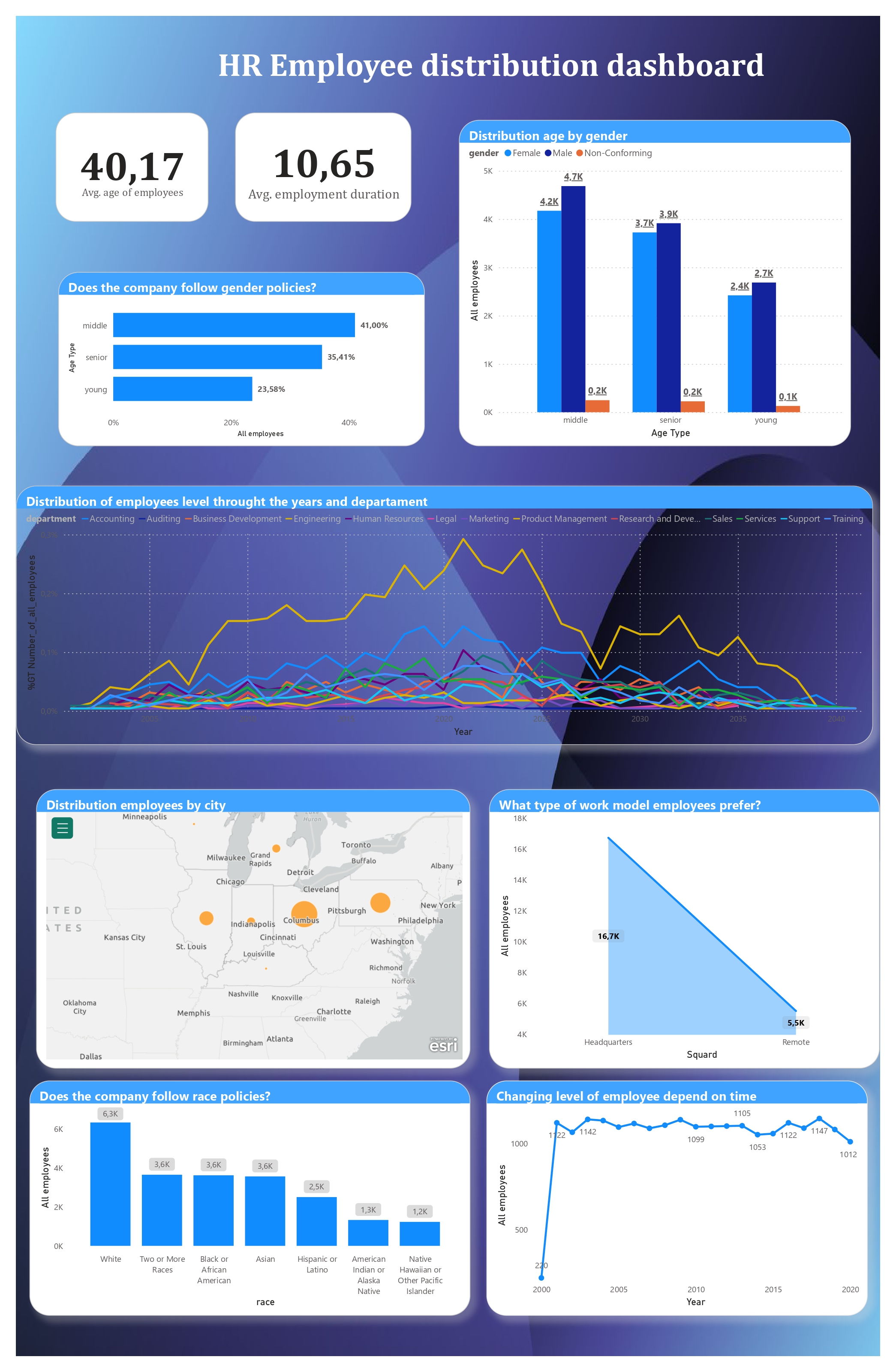

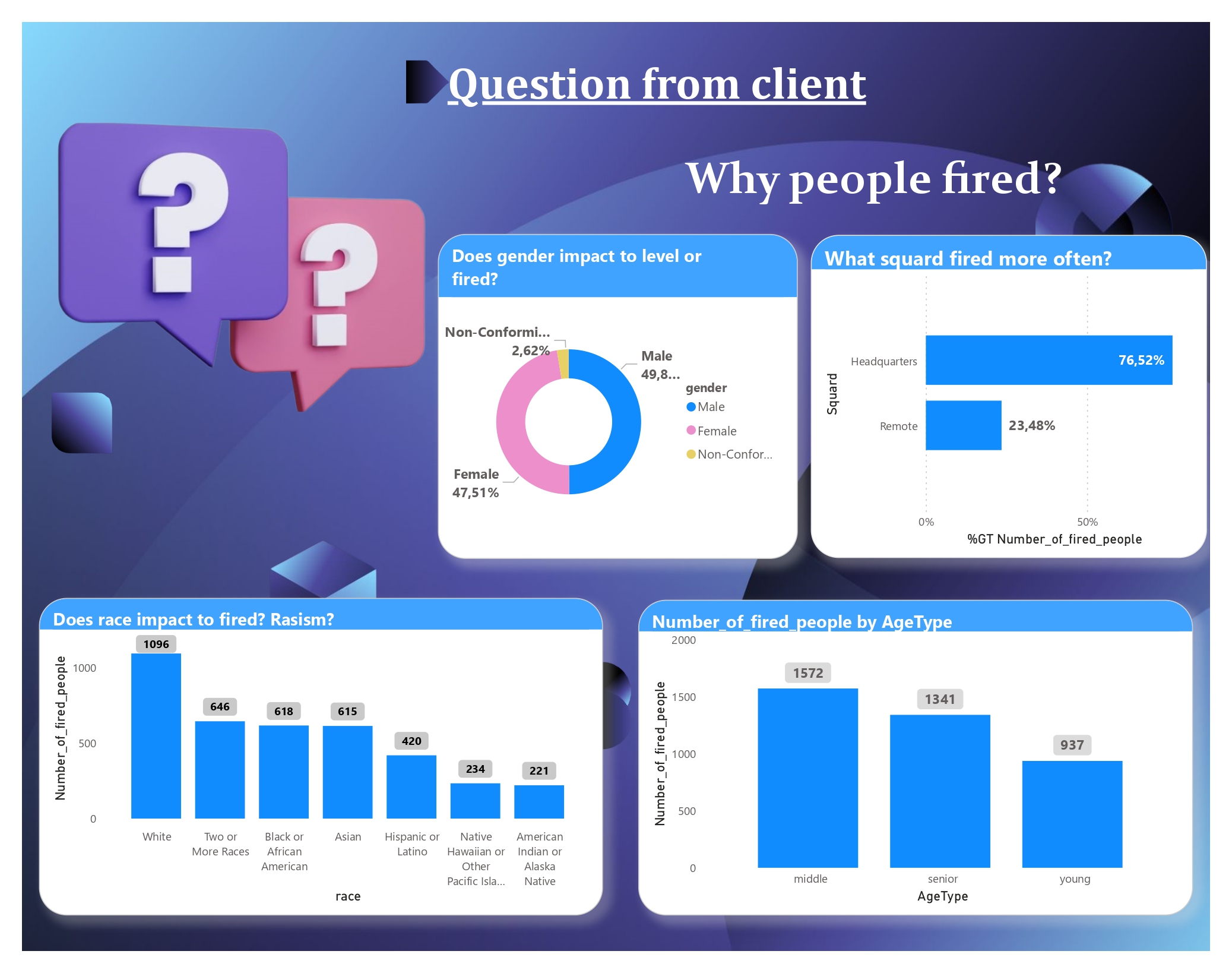

1.The dashboard is dedicated to studying hiring and firing trends within the organisation, as well as exploring the reasons why people leave the company. It also investigates whether there are signs of gender inequality or racism.

Related articles

Reseller SQL PBI
Dashboard PBI
Board in PBI

2. I will not describe simple procedures for calculating the average age of employees or sums. Instead, I want to highlight one transformation - the column "Duration," which describes the length of an employee's tenure at the company, contains both text and numerical values. Therefore, I calculated the average tenure using a calculated column:


    Duration_int = FORMAT(
    IF(
        'Human'[Duration] = "Working",
        0,
        'Human'[Duration]
    ),
    "0"
)



The findings from the report are as follows:

  • The average age of employees is around 40 years.
  • Employees tend to stay with the company for a long time, averaging about 11 years, which can be seen as a positive indicator.
  • The majority of employees work in the Engineering department.
  • FULL REPORT HERE
